How can a multi-bank battery system be made for use in a boat, RV, or other application? Although it is very straightforward, you must be familiar with the series and parallel wiring of 6V batteries.
You could wish to group numerous batteries together for a variety of reasons, including cost savings, increased efficiency, or to increase voltage or capacity.
Multiple battery configurations may be done either in series or in parallel.
A Series/Parallel combo is also available.
You can wire 6 volt batteries with the assistance of this guide.

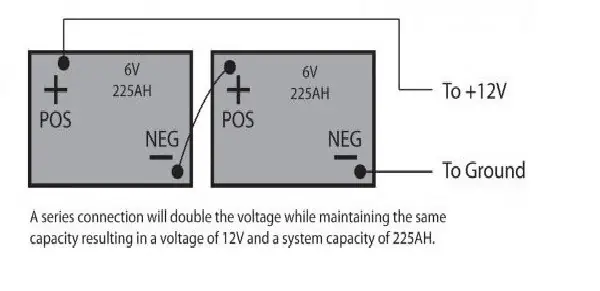

Step 1: Series-Wiring Batteries
When the batteries are connected in a series configuration as shown in the image below, the voltage doubles but the capacity stays the same.
In our diagram, two 6V batteries of 225AH are connected.
A battery bank with 12V and 225AH would be the end product.

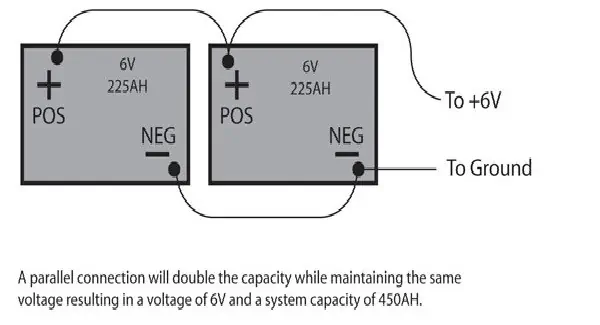

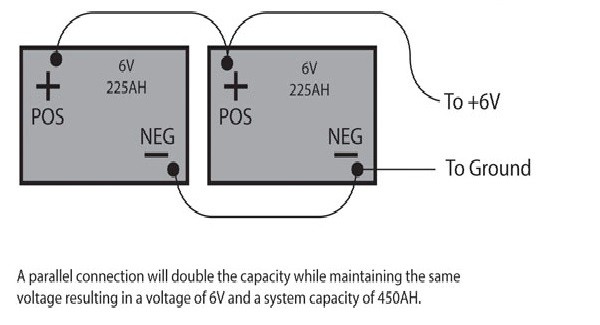

Step 2: Parallel Battery Wiring
The capacity of the batteries would double in a parallel configuration while the voltage stayed the same.
This is seen in the wiring schematic below.
In our diagram, two 6V batteries of 225AH are connected.
A battery bank with 6V and 450AH would be the end product.
Step 3: Combining Series and Parallel Wiring for Batteries
When batteries are connected in a series/parallel configuration, as shown in the image below, the voltage and capacity are both doubled.
In our diagram, four (4) 6V batteries with 225AH are connected.
Each pair is first wired in series to create two banks, which are then connected in parallel.
A battery bank with 12V and 450AH would be the end product.
